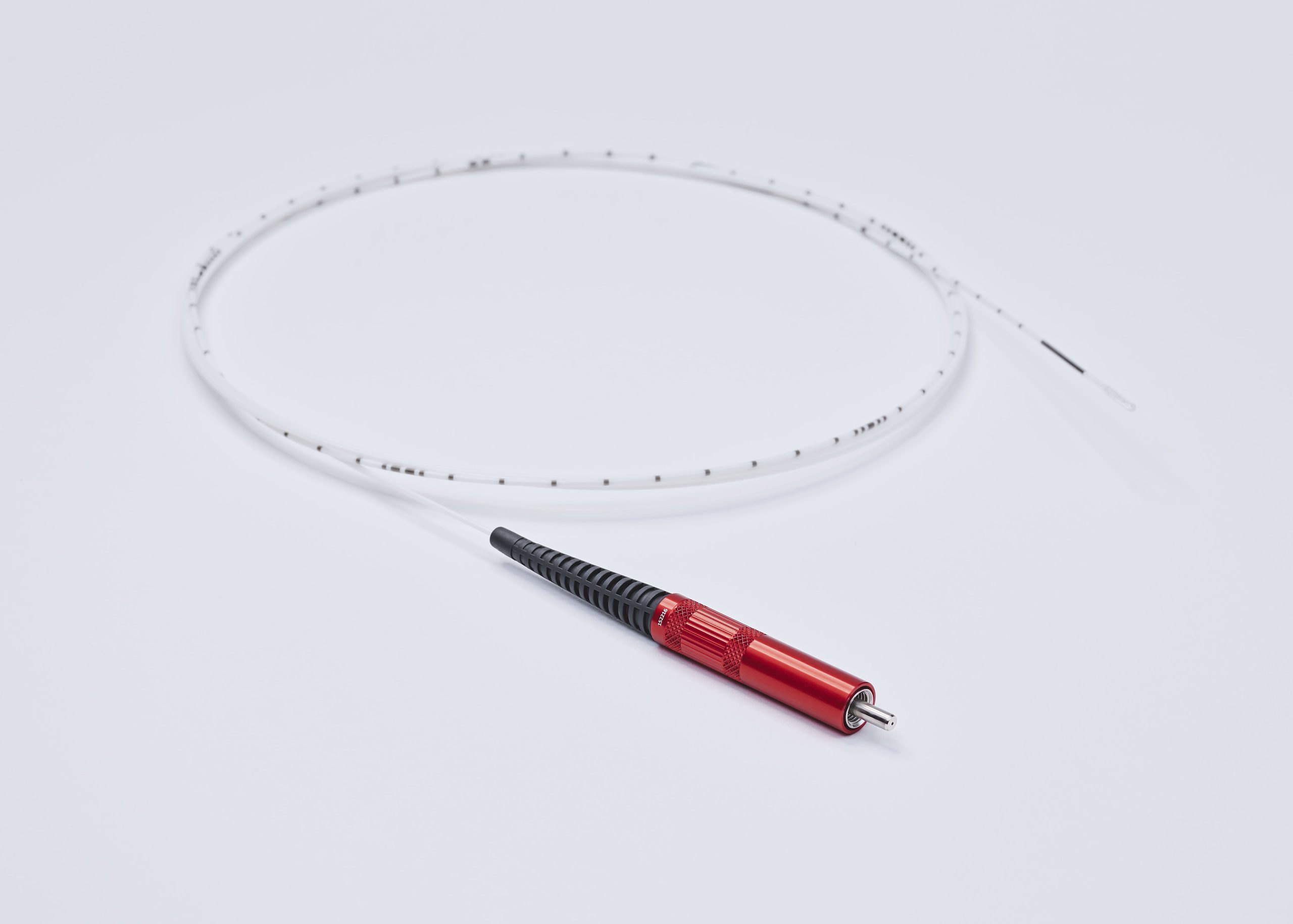

Radial Emission Laser Fiber

Description

10:     550µm fiber

20:     Standard SMA 905 connector

30:     Protection cap

40:     Extension sleeve red

50:     Bend protection

60:     Polyester shrink tube

70:     Silica capillary dome OD 1800µm

Device features:

Length: 2,6m ±0,2m

Connector: Standard SMA 905 connector

Distal end: Conical tip with silica capillary dome (radial emission 360°)

Marking: Line every 1cm

Special mark every 10cm

Solid black on distance of 13 – 15cm

Further features: OBERON Label

Optimized for a diode laser system (1470nm)

Optical fiber properties:

NA: 0.22 ± 0.02

Core: Ø 550µm ± 2%

Clad: Ø 578µm ± 2%

Buffer: Ø 1300µm ± 5%

Buffer material: Tefzel, white
